Automated Procurement Approval Workflow: Architecture Guide for Large Enterprises

Introduction

For large enterprises, procurement approval is not a single process—it is a network of interdependent decisions, each governed by different business rules, different authority thresholds, and different compliance requirements. A $500 office supply order and a $5 million infrastructure contract both require approval, but they should not require the same process.

An automated procurement approval workflow at enterprise scale must be sophisticated enough to handle this complexity: routing dynamically based on spend, vendor category, cost centre, and risk profile; enforcing SLAs across every tier; connecting bidirectionally to ERP systems; and providing audit-ready documentation of every decision made.

This architecture guide covers the structural design of enterprise procurement approval workflows, from the approval matrix through the integration layer.

Why Enterprise Procurement Approval Requires Dedicated Architecture

Enterprise procurement operations face challenges that smaller organisations do not. Scale introduces complexity at every layer:

• Volume: Hundreds or thousands of POs per month across multiple business units

• Jurisdictional variation: Different approval rules for different regions, entities, or subsidiaries

• Vendor diversity: Strategic partners, spot suppliers, new vendors, and sole-source providers each carry different risk profiles

• ERP fragmentation: Multiple ERP instances (or multiple modules within one ERP) that must be kept in sync

• Regulatory requirements: SOX, GDPR, and industry-specific compliance obligations that mandate audit trails and segregation of duties

A generic approval tool is not equipped to handle this environment. Enterprise procurement approval requires a purpose-built workflow architecture.

The Enterprise Procurement Approval Architecture: Five Core Layers

Layer 1: The Approval Matrix

The approval matrix is the master rule set that determines who must approve what. At enterprise scale, this matrix is multi-dimensional:

• Spend threshold dimension: Dollar value determines how many approval tiers are required

• Category dimension: Capex, opex, IT, professional services, and facilities may each have category-specific approval chains

• Vendor dimension: New vendors, strategic suppliers, and high-risk vendors trigger additional review steps

• Jurisdiction dimension: Approvals may require local authority sign-off for international entities

• Exception dimension: Emergency procurement, sole-source, and blanket orders follow separate paths

Document your full approval matrix before building anything. Most large enterprises find that what they assumed was a simple three-tier approval process is actually 12–15 distinct approval chains when fully mapped.

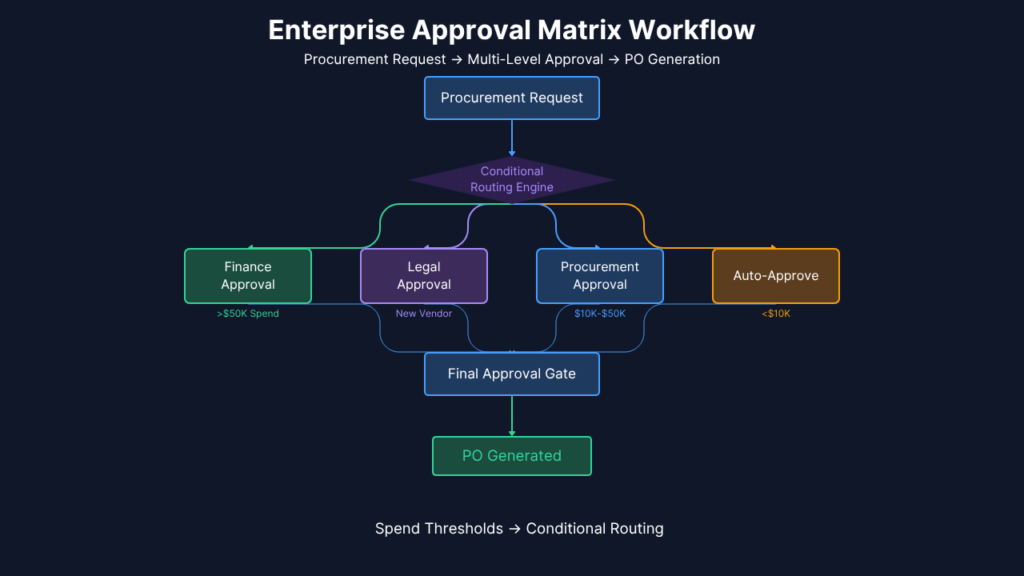

Layer 2: Conditional Routing Engine

The routing engine is the mechanism that reads a PO’s attributes and applies the approval matrix to determine the correct workflow path. It must handle:

• If/else branching: Different attributes trigger different paths

• Parallel routing: Multiple approvers reviewing simultaneously (e.g., Finance and Legal for high-value contracts)

• Sequential routing: Mandatory sequencing where each tier must complete before the next begins

• Dynamic assignment: Routing to a role, not a named individual, so that approver changes don’t require workflow reconfiguration

The routing engine should be configurable by operations teams without engineering involvement. When your approval matrix changes—and it will—your team should be able to update routing rules in the platform without a development cycle.

Layer 3: SLA Management and Escalation

Every approval tier needs enforced timing. The SLA layer includes:

• Per-tier timers: Each approval stage has its own deadline

• Warning notifications: Alerts fire at defined intervals before the deadline

• Auto-escalation: Breached deadlines trigger automatic routing to fallback approvers

• Escalation audit: Every escalation event is logged with timestamp and context

For a detailed treatment of SLA architecture, see SLA-based workflow escalation: how to automate breach prevention.

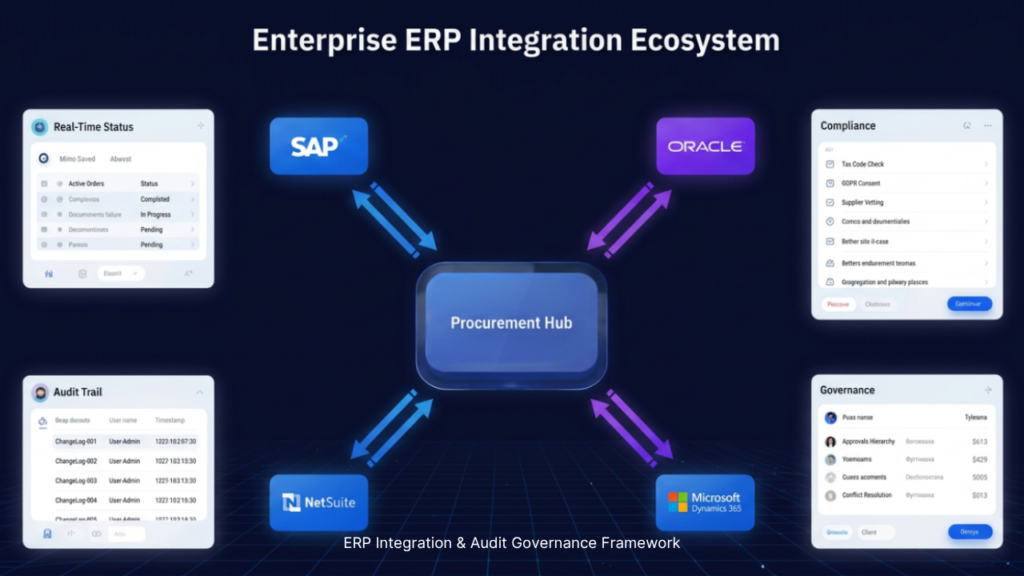

Layer 4: ERP Integration Layer

The ERP integration layer connects the approval workflow to the systems of record where procurement data lives. At enterprise scale, this integration must be:

• Bidirectional: The ERP triggers the workflow when a PO is created; the workflow writes the approval result back to the ERP automatically

• Real-time: Status changes in the workflow are reflected in the ERP without batch processing delays

• Multi-instance capable: Large enterprises often run multiple ERP instances; the integration layer must be able to connect to all of them

• Resilient: Failed integration events must be caught, logged, and retried without data loss

Snoh Flow’s ERP connector library supports SAP S/4HANA, Oracle Fusion, and Microsoft Dynamics 365 with native bidirectional sync. Procurement teams can configure the integration without writing custom middleware, and approval results write back to ERP records automatically once each workflow stage completes.

Layer 5: Audit and Governance Layer

The audit layer captures everything the approval process produces:

• Decision records: Who approved what, when, under what authority

• SLA performance records: Timer starts, warning fires, escalations, and breach events

• Exception records: Out-of-policy approvals, emergency procurement events, and overrides

• Delegation records: Which approvals were handled by delegates and under what authority

This layer is the evidence base for SOX compliance, internal audit, and financial review. It should be accessible to audit teams directly, without requiring IT to extract and prepare data.

Delegation Matrix: Managing Approval Authority at Scale

A delegation matrix defines who has authority to approve on behalf of whom, under what conditions, and for what scope. At enterprise scale, this matrix must specify:

Role	Delegates To	Delegation Scope	Activation Condition	Duration Limit
CFO	SVP Finance	Up to $500K	OOO / absence	30 days
CPO	VP Procurement	All categories	OOO / absence	30 days
Regional Finance Head	Senior Finance Manager	Regional spend only	OOO / absence	14 days
Line Manager	Peer Manager	Under $25K	Mutual agreement	7 days

Pre-configure this matrix in your workflow platform and integrate with HR/calendar systems to activate delegation automatically when absence is recorded.

Vendor-Risk Routing: Adding a Compliance Layer to Procurement Approval

Enterprise procurement approval must account for vendor risk. A new supplier introducing your organisation to a third-party risk is categorically different from an approved incumbent vendor reordering consumables.

Vendor-risk routing adds a compliance gate to the procurement workflow for:

• New vendors: Trigger a vendor onboarding and risk assessment workflow before PO approval proceeds

• High-risk vendors: Flag vendors on watchlists or with adverse compliance history for mandatory compliance review

• Sole-source vendors: Require additional justification and approval for non-competitive procurement

• International vendors: Apply sanctions screening and currency/payment approval where required

This routing layer should connect to your vendor master data in the ERP, automatically classifying vendors at the point of PO creation.

What Good Looks Like: Enterprise Procurement Approval KPIs

After deploying an automated procurement approval workflow, track performance against these benchmarks:

• Average approval cycle time: Enterprise best practice is under 48 hours for standard POs

• SLA compliance rate: Target 95%+ of approvals completed within defined SLA

• Exception rate: What percentage of POs require out-of-matrix handling?

• Straight-through processing rate: What percentage of POs are approved without any manual intervention?

• Audit readiness: Time required to produce a complete approval record for an audit query

Conclusion

An automated procurement approval workflow for large enterprises is not a simple routing tool—it’s a multi-layered operational architecture. The approval matrix, routing engine, SLA management, ERP integration, and audit governance layer each require deliberate design.

Three key takeaways:

1. Map your full approval matrix before configuring any workflow platform—enterprise procurement is invariably more complex than it appears on the surface

2. ERP integration must be bidirectional and real-time to eliminate manual status updates and data synchronisation delays

3. The governance and audit layer is not optional—at enterprise scale, compliance and audit requirements make it a core architectural component

For procurement leaders looking to extend this architecture into the full procure-to-pay cycle, see procurement workflow automation: end-to-end architecture from requisition to payment.
